Baffa-2 Z180 CPU
The cpu is the brain of the computer. It is what processes and controls all data. Baffa-2 Homebrew Microcomputer allows you to use Zilog Z180 at aprox 18 MHz.

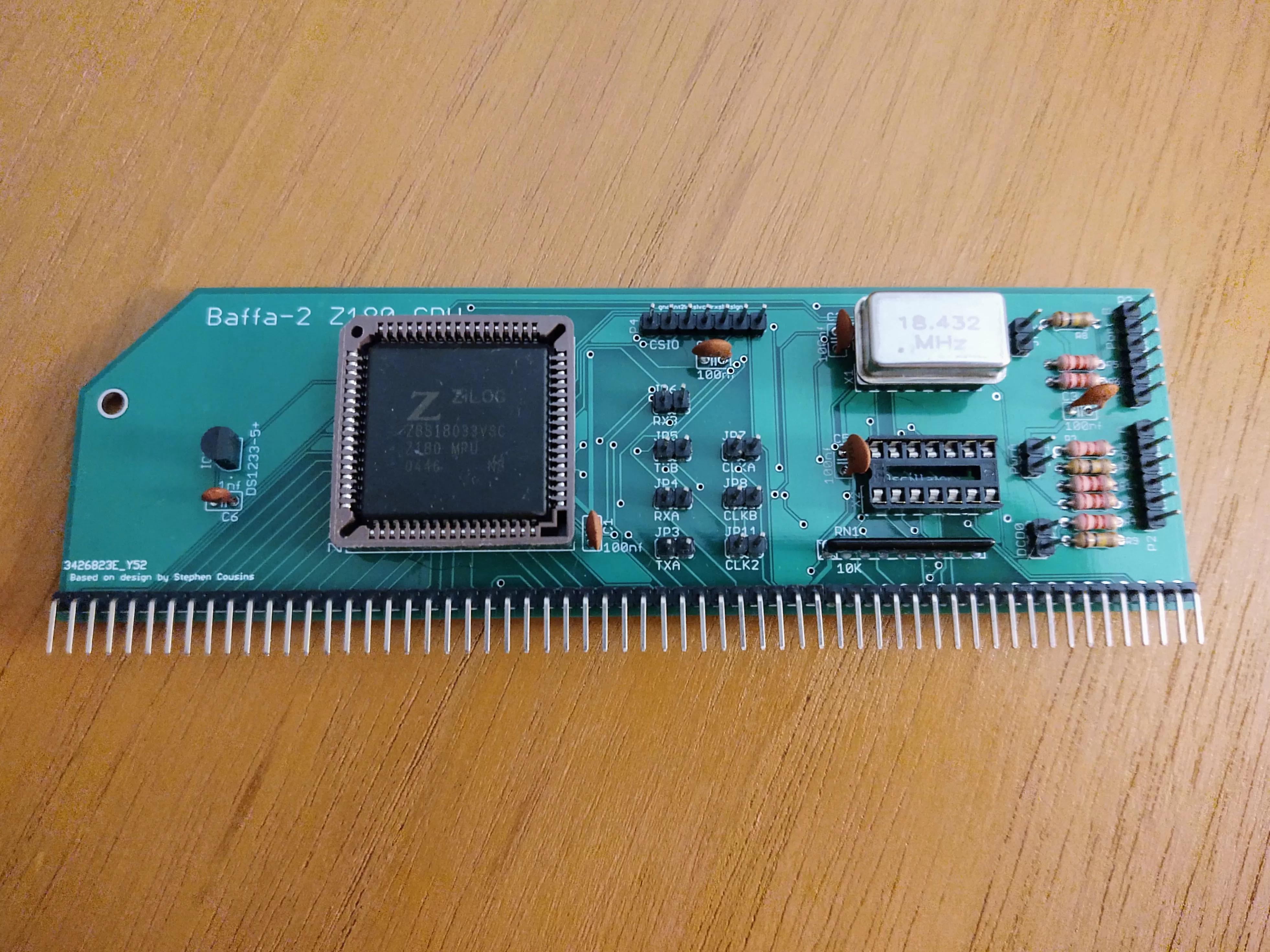

Z180 CPU
Z180 CPURelated Files:
Settings
| JP1 | ||
|---|---|---|
| = | Adds VCC to Port A | |
| JP2 | ||
| = | Adds VCC to Port B | |
| JP9 | ||
| = | Set DCD0 to low | |
| JP7 | ||
| = | Connect X2 Clock to CLKA | |
| JP8 | ||
| = | Connect X2 Clock to CLKB | |
| JP11 | ||
| = | Connect X2 Clock to CLK2 | |
| JP3 | ||
| = | Connect TX1 to TXA | |
| JP4 | ||
| = | Connect RX1 to RXA | |
| JP5 | ||
| = | Connect TX2 to TXB | |
| JP6 | ||
| = | Connect RX2 to RXB | |
