Baffa-2 Z80 CPU
The cpu is the brain of the computer. It is what processes and controls all data. Baffa-2 Homebrew Microcomputer allows you to use Zilog Z80 at aprox 4MHz and 8 MHz setups.

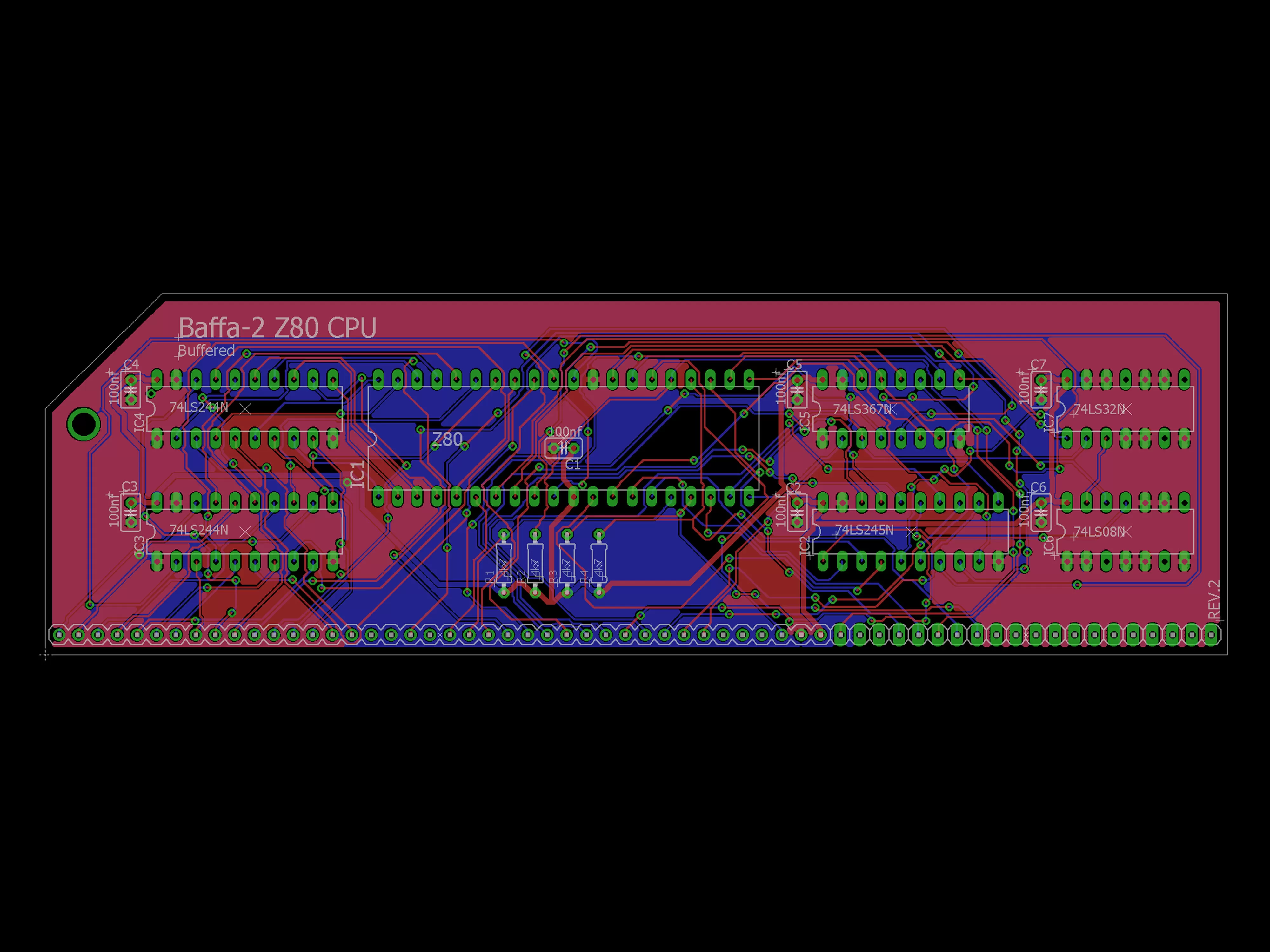

Baffa-2 Z80 CPU Rev.2 Buffered
Z80 CPU Rev.2 BufferedRelated Files:
Related Datasheets:
Related Projects:
Related Revisions:
- Jul/2023 Rev.2 Buffered
* Based on Rev.1 Buffered
* Replaces Control Bus Buffer from 74LS244 to 74LS367
- Jun/2023 Rev.0 Wait
* Based on Prototype
* Adds wait/M1 circuit
- Apr/2023 Rev.2 Buffered Wait
* Based on Rev.1 Buffered
* Replaces Control Bus Buffer from 74LS244 to 74LS367
* Adds wait/M1 circuit
- Aug/2022 Rev.1 Buffered
* Based on Prototype
* Adds buffer to Address, Data and Control Busses
- Nov/2021 Prototype
