Baffa-2 Compact Flash | IDE

Back to Hardware Specifications Page

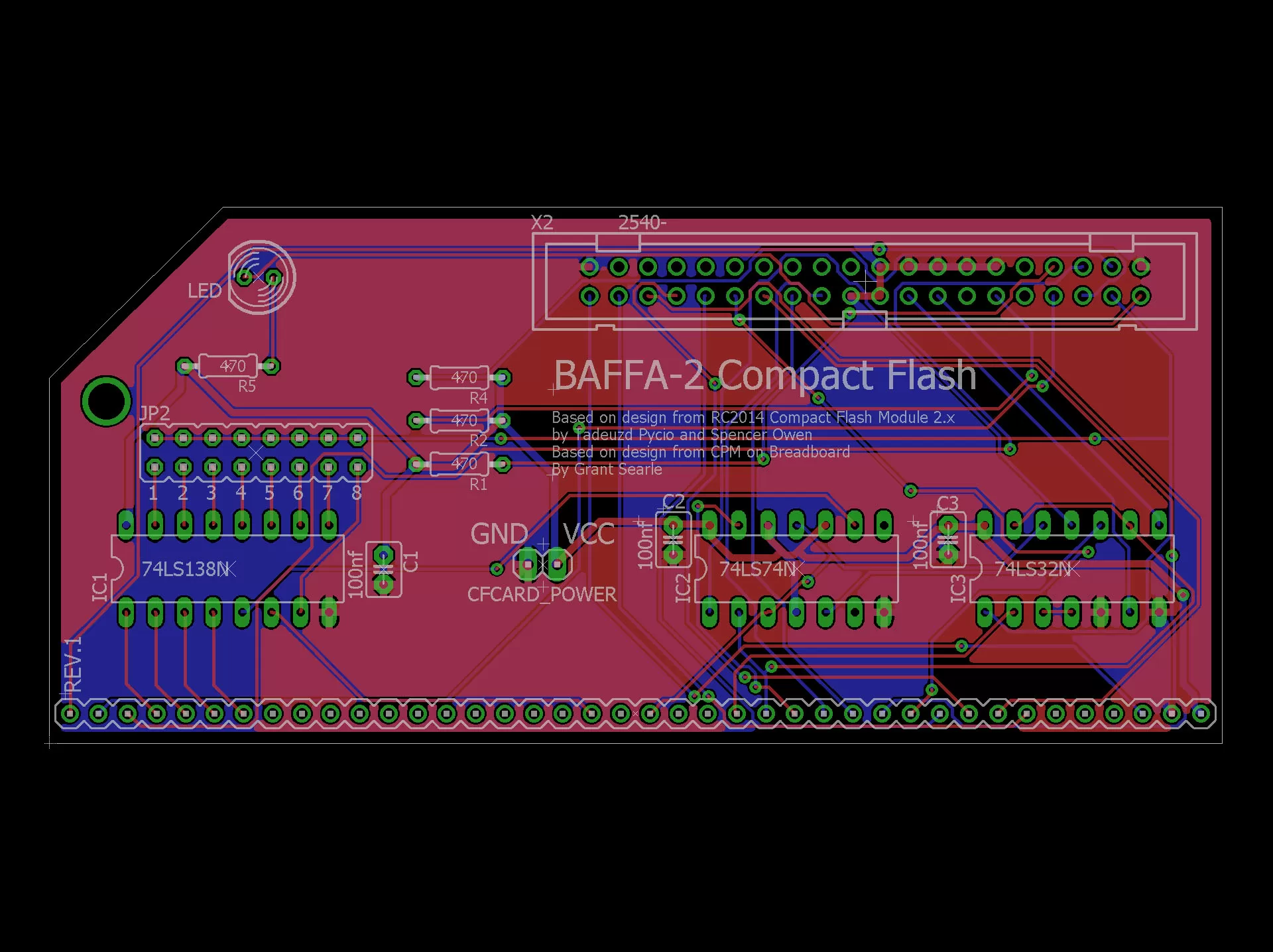

Disk Interface for Baffa-2. This implements a simple 8-bit IDE and can be used with old harddrives or CFCards (with ide adapter). The schematic is based on desing from "RC2014 Compact Flash Module" by Spencer Owen and "CPM on Breadboard" by Grant Searle.

Compact Flash | IDE Rev.1

Compact Flash | IDE Rev.1

Related Files:


Settings

Default Address: 10h (pin3)

JP2 (Address)
pin100h
pin208h
pin310h
pin418h
pin520h
pin628h
pin730h
pin838h

Related Datasheets:


Related Projects:


Related Revisions:

  • Jan/2024 Rev.1
    * Adds Jumper JP2 to set address mapping
    * Updates design based on "RC2014 Compact Flash Module 2.x" by Tazeuzd Pycio and Spencer Owen

  • Nov/2021 Prototype
