Baffa-6502 CPU

Back to Hardware Specifications Page

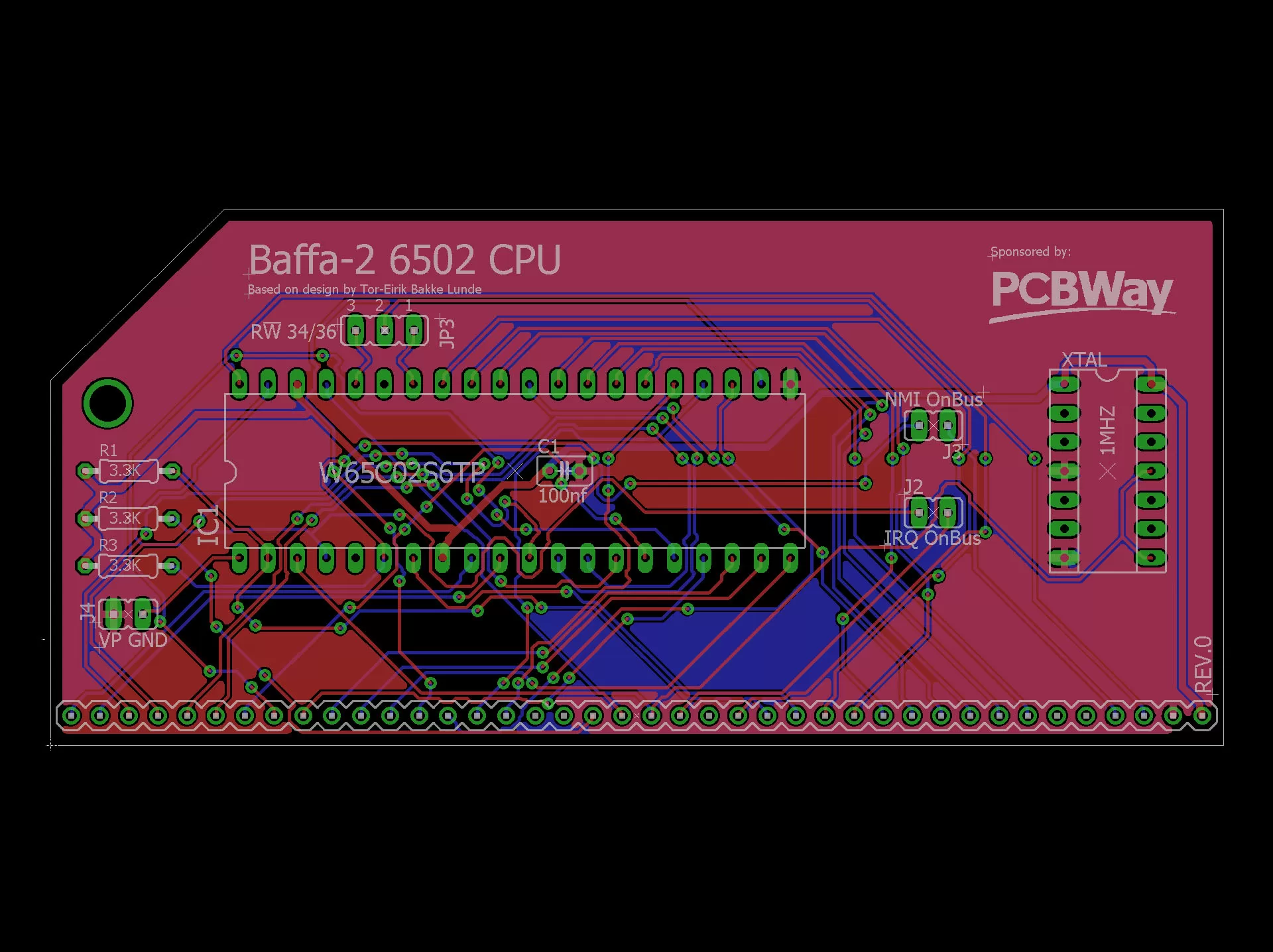

The cpu is the brain of the computer. It is what processes and controls all data. Baffa-6502 Homebrew Microcomputer allows you to use MOS6502 at aprox 1MHz.

6502 CPU Rev.0

6502 CPU Rev.0


Related Files:


Related Datasheets:



Related Projects:



Related Revisions:

  • Oct/2023 Rev.2
    * Jumper J1 connects CLK1 (backplane pin 20 PHI1o) to CPU PHI1O (pin 3)
    * Jumper J3 connects CLK2 (backplane pin 19 PHI2o) to CPU PHI2O (pin 39)

  • Aug/2022 Rev.1
    * Buffer ICs to Address and Data Buses * DMA control to Data Bus

  • Jun/2022 Rev.0
    * Jumper J3 R/W on pin 34/36 - make board compatible to 6502 and 65C02 CPUs

  • May/2022 Prototype
