Baffa Pi Pico Terminal
The terminal card implements the main VT-100 escapes and allows you to use Baffa-2 as a standalone machine. It has a 80x30 monochromatic VGA output and uses (mini)USB Keyboard input and comunicates with the serial port A or B.
More info about...
More info about...
- Baffa Terminal on Hackaday
- Supported CSI/Ansi escapes
- Based on Minimal Terminal/VGA project by Carsten Herting
Baffa Pi Pico Terminal Rev.0
Baffa Pi Pico Terminal

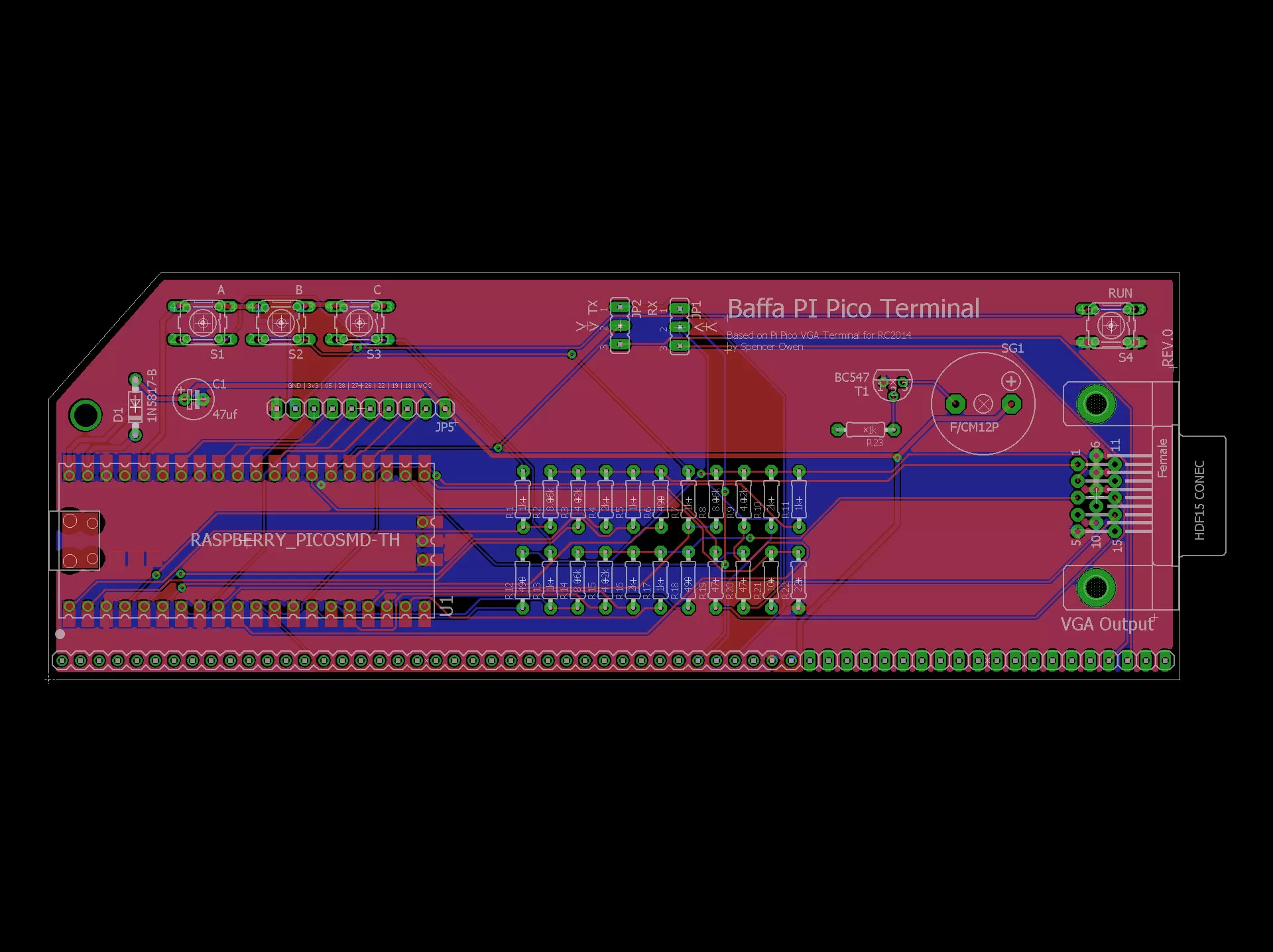

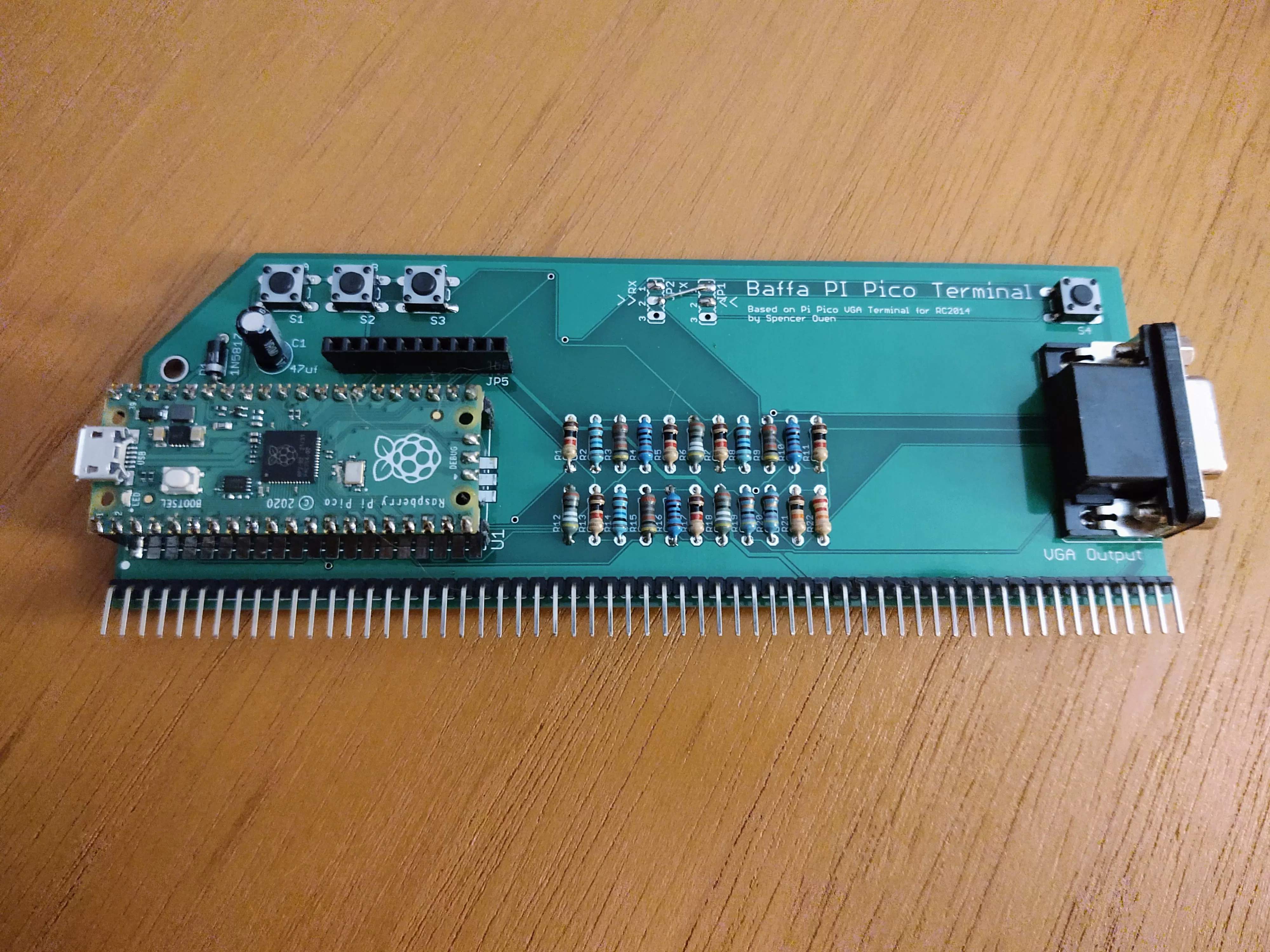

Baffa Pi Pico Terminal Rev.0Related Files:
Firmware:
Settings
| JP1 (TX) | ||
|---|---|---|
| =o| | Use Port A | |
| o= | Use Port B | |
| JP2 (RX) | ||
| =o| | Use Port A | |
| o= | Use Port B | |
| JP5 | ||
| pin1 | VCC 5v | |
| pin2 | GPio18 | |
| pin3 | GPio19 | |
| pin4 | GPio22 | |
| pin5 | GPio26 | |
| pin6 | GPio27/Buzzer | |
| pin7 | GPio28 | |
| pin8 | GPio5 | |
| pin9 | VCC 3.3v | |
| pin10 | GND | |
