Baffa Terminal
The terminal card implements the main VT-100 escapes and allows you to use Baffa-2 as a standalone machine. It has a 60x25 monochromatic VGA output, PS/2 Keyboard input and comunicates with the serial port A or B.
More info about...
More info about...
- Baffa Terminal on Hackaday
- Supported CSI/Ansi escapes
- Based on Minimal Terminal/VGA project by Carsten Herting

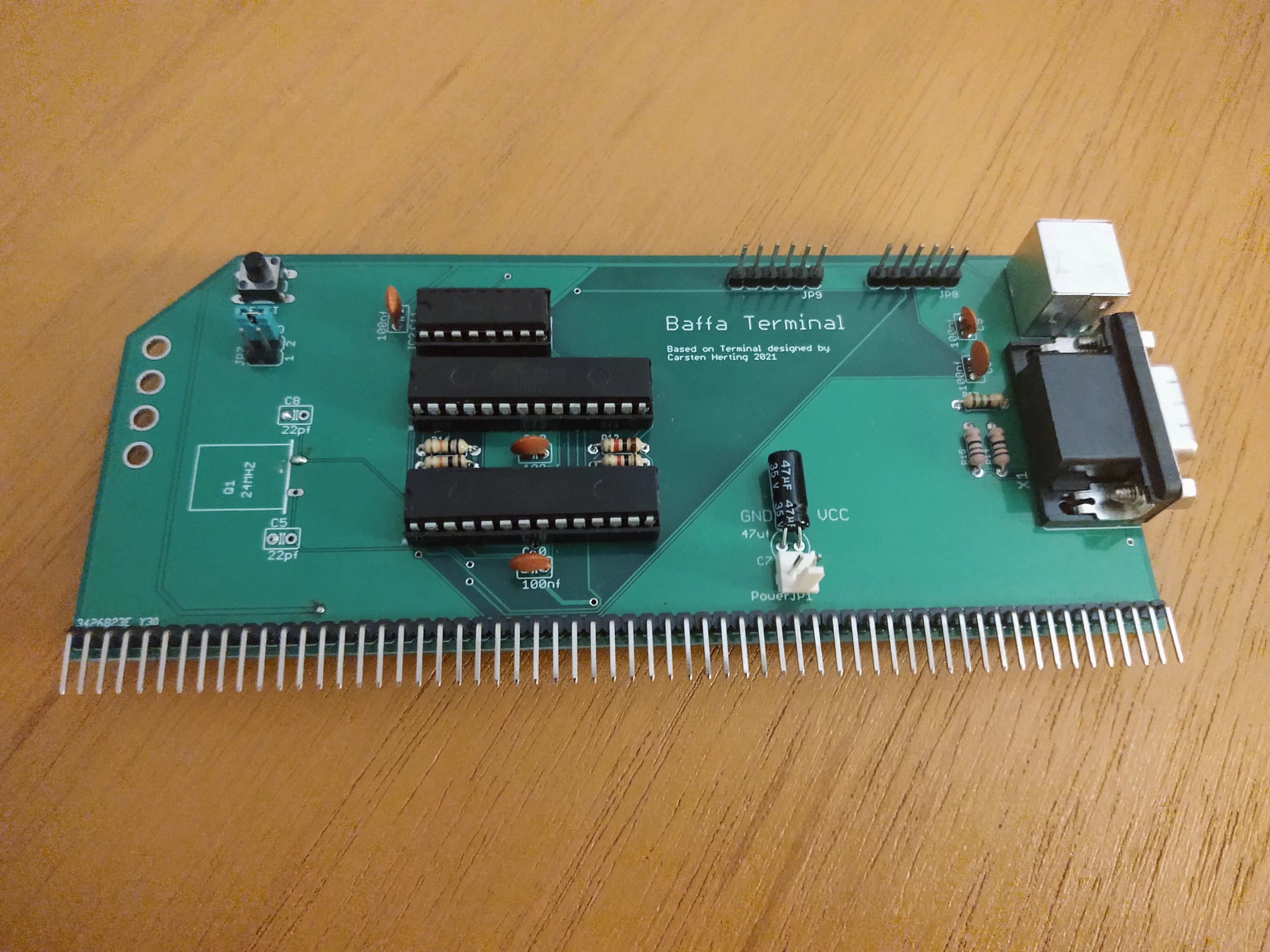

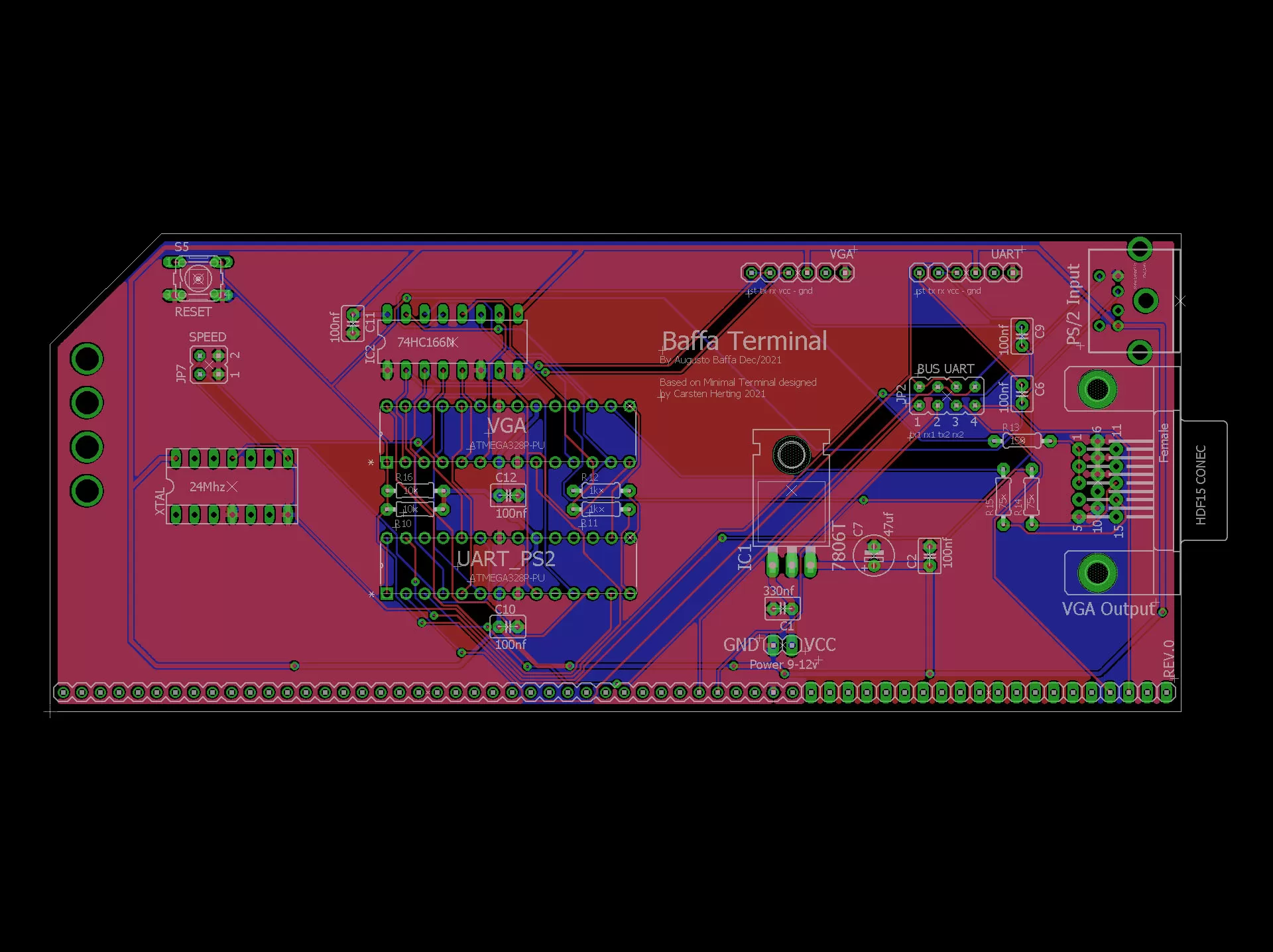

Baffa Terminal Rev.0
Baffa Terminal
Baffa Terminal Rev.0Related Files:
Firmware:
- Default 60 Columns Firmware
- 40 Columns Firmware with Apple1 Chars
Settings
| BUS-UART | ||
|---|---|---|
| 88|| | Use Port A | |
| ||88 | Use Port B | |
| BUS-UART Pins | ||
| pin1 | TXA | |
| pin2 | RXA | |
| pin3 | TXB | |
| pin4 | RXB | |
| SPEED (up-down) | ||
| 88 | 115200 bps | |
| |8 | 57600 bps | |
| 8| | 38400 bps | |
| || | 19200 bps | |
| UART Tag | ||
| pin1 | GND | |
| pin2 | - | |
| pin3 | VCC | |
| pin4 | RX | |
| pin5 | TX | |
| pin6 | Reset (Btn) | |
| VGA Tag | ||
| pin1 | GND | |
| pin2 | - | |
| pin3 | VCC | |
| pin4 | RX | |
| pin5 | TX | |
| pin6 | Reset (Btn) | |
